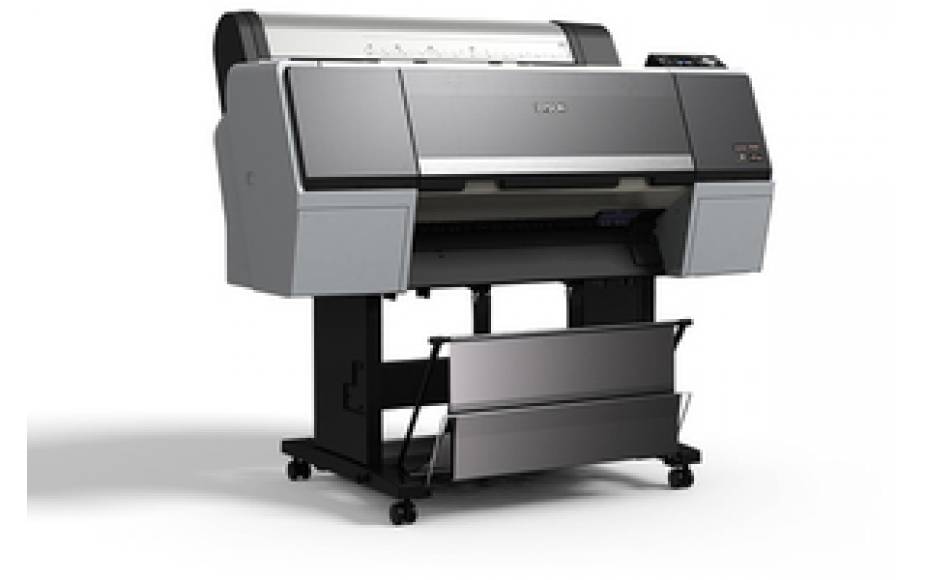

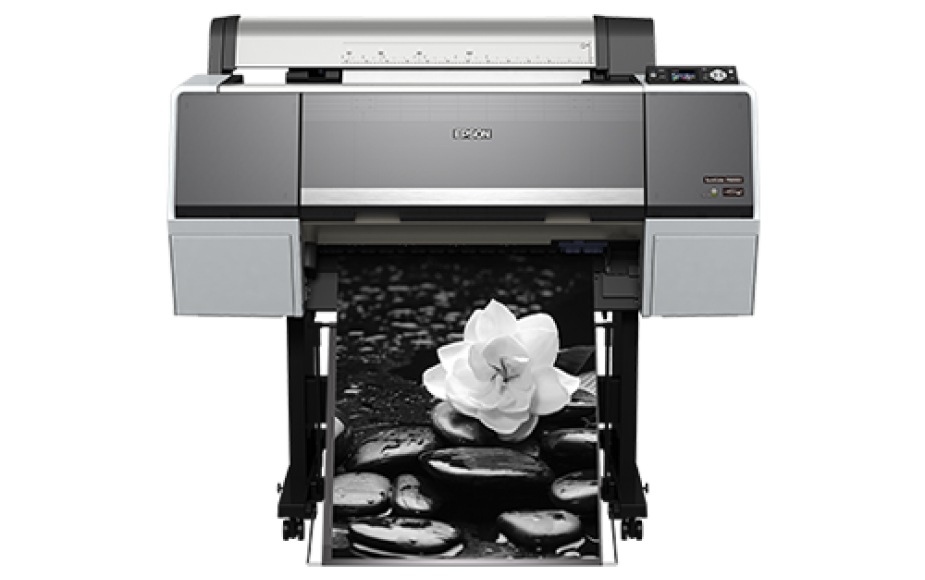

EPSON SURECOLOR SC-P6000/24" A1 SIZE PHOTO/PROOFING PRINTER

 Download Catalogue

Printing:

Printing Technology:PrecisionCore™ TFP printhead, Epson Variable-Sized Droplet TechnologyNozzle Configuration:Black: 360 nozzles each colour (X3)
Colour: 360 nozzles each colour (X5)Print Direction:Bi-directional printing, uni-directional printing
Auto Head Alignment Technology
Auto Nozzle Check Technology
Auto-switching between Photo bk and Matte PK
Bar-code Print SystemMaximum Print Resolution:2880x1440 dpiMinimum Ink Droplet Size:3.5plPrint Speed:Draft Mode: 360 x 360dpi, 0.8 minutes ^*1
Normal Mode: 360 x 720dpi, 1.5 minutes ^*1
Fine Mode: 720x x 720dpi, 3.3 minutes ^*1
Super Fine Mode: 720 x 1440dpi, 8.1 minutes ^*1
Super Photo Mode: 2880 x 1440dpi, 13.4 minutes ^*1

Ink:

Ink Type:Epson UltraChrome HDInk Capacity:700ml/350ml/150ml/ 110ml (Bundled)Ink Configuration:Cyan,Photo Black,Matte Black,Vivid Magenta,Yellow,Light Cyan,Vivid Light Magenta,Light Black,Light Light Black

Printable Area and Accuracy:

Line Accuracy:±0.2% of the specified vector length or ±0.26mm

General:

Operating Systems:Windows XP/Vista/7/8/8.1 (32/64bit) or later; Mac OSX 10.6.8 or laterTemperature:Operating: 10°C - 35°C
Storage: -20°C - 40°CHumidity:Operating: 20 - 80% (no condensation)
Storage: 5 - 85% (no condensation)Dimensions:Stowed: 1,356 x 667 x 1,218 mm
Printing: 1,356 x 903 x 1,218 mmSystem Requirements:Windows XP/Vista/7/8/8.1 (32/64bit) or later
CPU : Core 2 Duo 3.05GHz
Memory : Memory more than 1GB
HDD : Free space more than 32GB

Macintosh Mac OS X10.6.8 or later
CPU : Core 2 Duo 3.05GHz
Memory : Memory more than 1GB
HDD : Free space more than 32GBWeight:Approx. 101kgMemory:1GbBundled Items:Printer, Stand, Power Cord, Set of 110ml Inks (note 20-50% may be used during initialisation),1 x Roll Media Adaptor Set, 1 x Maintenance Tank, Installation / Safety manual, Utility software & User manual (CD)Acoustic Noise Level:Sound Pressure Level : 47dB(A) Less than
Sound Power Level : 6.5B(A) Less than

Printer Details:

Printer Language:ESC/P rasterControl Panel:Colour & Size: 2.7 inch Colour LCD
Number of Dots: 960 x 240 pixSoftware Included:Bundled Software:
LFP RemotePanel 2
Epson Color Calibration Utility
EpsonNet Setup
EpsonNet Config
EpsonNet Print (Windows only)
Remote Manager (Access via browser)

Web Download Software:
Epson Print Layout
LFP Accounting Tool
HDD Utility software
LFP Print Plug-In for Office

Power:

Rated Voltage:AC 100-240V 50/60HzPower Consumption:Operating: Approx. 65 W
Ready: Approx. 19 W
Sleep: Approx. 2.0 W *Interface is 1000BASE-T
Power off (Stand-by): Less than 0.5WRated Current:2A

Paper Handling:

Paper Path:Friction FeedBorderless Sizes:254mm (10in.), 300mm (11.8in.), 329mm (13in.), 406mm (16in.), 432mm (17in), 515mm (20.3in.), 594mm (23in.), 610mm (24in.)Paper Size & Thickness:254mm (10”) - 610mm (24”): Roll paper
254mm (10”) - 610mm (24”): Cut Sheet
0.08-1.50mmRoll Dimensions:254mm-610mm, 2inch-core/3inch-core
2inch-core: Max 103mm/ 3inch-core: Max 150mmRoll Paper Remaining:The remaining amount is managed by the barcode print on roll paper.

Connectivity:

Interface:Hi-Speed USB, 10BASE-T/100BASE-T/1000BASE-T
