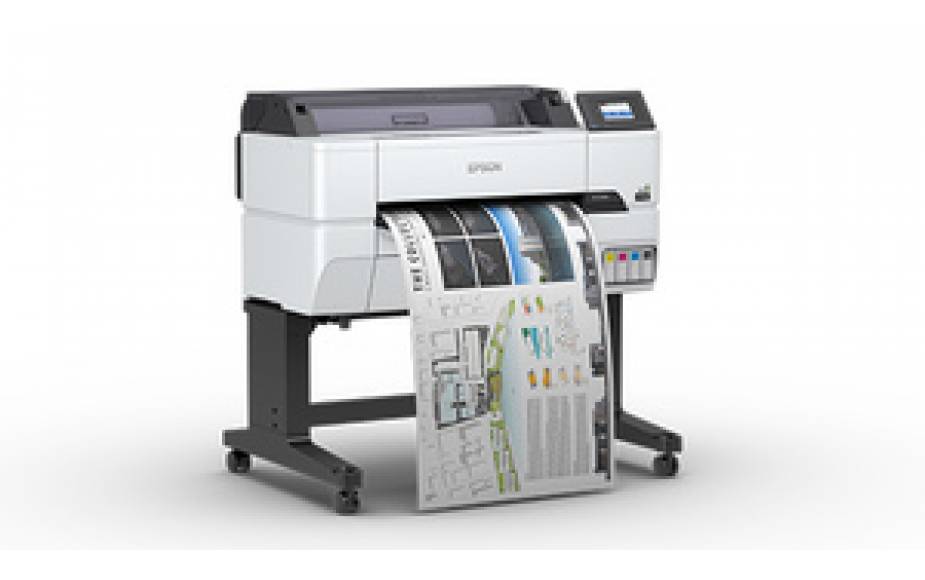

EPSON SURECOLOR SC-T3435/36" A1 SIZE PRINTER

 Download Catalogue

Printing:

Print Head:PrecisionCore TFP Printhead

Nozzle Configuration:3,200 nozzles (800 nozzles x 4 channels x 1head)

Maximum Print Resolution:2,400 x 1,200 dpi

Minimum Ink Droplet Size:4.0 pl

Line Accuracy:±0.1% or ±0.26 mm

Minimum Line Width:0.07 mm *¹ (0.02 mm *²)

Paper Handling:

Media Thickness:Roll: 0.08 mm to 0.3 mm / Cutsheet: 0.08 mm to 0.3 mm

Media Type:Inkjet Coated Paper, Tracing Paper, Plain Paper

Side Margin:Roll Paper: 3 mm (Borderless: 0 mm)
Cut Sheet: 3 mm (Top) / 20 mm (Bottom) / 3 mm (Left/Right)
[Borderless: 3 mm (Top) / 20 mm (Bottom) / 0 mm (Left/Right)]

Borderless Print:YesMaximum Roll Diameter / Weight:2/3” Core, Max. 170 mm/8kg

Paper Width:Roll: 254 mm to 610 mm
Cutsheet: 210 mm to 610 mm

Consumables:

Black Ink Cartridge:

110ml: C13T41Q500
350ml: C13T41D500
700ml: C13T41C500

Cyan Ink Cartridge:

110ml: C13T41Q200
350ml: C13T41D200
700ml: C13T41C200

Magenta Ink Cartridge:

110ml: C13T41Q300
350ml: C13T41D300
700ml: C13T41C300

Yellow Ink Cartridge:

110ml: C13T41Q400
350ml: C13T41D400
700ml: C13T41C400

Maintenance Box:C13T699700

Auto Cutter Spare Blade:C13S902007

Borderless Replacement Pad Kit:C13S400064

Printer Width:

Printer Width:24"

Electrical Specifications:

Rated Voltage, Frequency and Current:AC 100-240V, 50/60Hz, 2.8A

Electric Power Consumption:Operating: Approx. 34W
Ready: Approx. 13W
Sleep: Approx. 1.3W
Power Off: Approx. 0.25W

Warranty:

Warranty:3-years Warranty

Ink System:

Ink Type:UltraChrome XD2 Pigment Ink

Colours:Cyan, Magenta, Yellow, Black

Environmental Conditions:

Temperature:Operating: 10ºC - 35ºC, Storage: -20ºC - 40ºC

Humidity:Operating: 20 - 80% (No Condensation), Storage: 5 - 85% (No Condensation)

Sound Pressure:Operating: Approx. 49dB(A),
Sleep: Approx. 32dB(A)

Sound Power:Operating: Approx. 7.5B(A)

Options:

Roll Feed Spindle (24"):C12C933281

Print Speed:

POP:24 sec (A1)

CAD:25 sec

Software Information:

Supported OS:Windows XP SP3 or later / Vista / 7 / 8 / 8.1 / 10,
Windows Server 2003 / 2008 / 2012 / 2016 / 2019,
Mac OS X 10.6.8 or later

Printer Management Tools:Epson Edge Dashboard, LFP Accounting Tool, Epson Device Admin, Epson Cloud Solution PORT

Printer Dimensions and Weight (Without Ink):

Dimensions With Stand (W x D x H):1,080 x 750 x 1,060 mm

Weight With Stand:64 kg

Connectivity:

Memory:1GB

Interface:USB 3.0, Ethernet (100BASE-TX /1000BASE-T), Wi-Fi (IEEE802.11b/g/n)

USB Direct:Yes

Printer Languages :ESC/P raster HP-GL/2, HP RTL *³

Scanner Integration:Document Scanner
Epson WorkForce DS-530, DS-6500, DS-60000

Business Inkjet Printers
WF-R8591, WF-C869R, WF-C878R,
WF-C879R, WF-C17590, WF-C20590, WF-C20600, WF-C20750,
WF-C21000, WF-M20590

Wi-Fi Direct:Wi-Fi Direct (Simple AP)

Control Panel:4.3” Touch Screen
