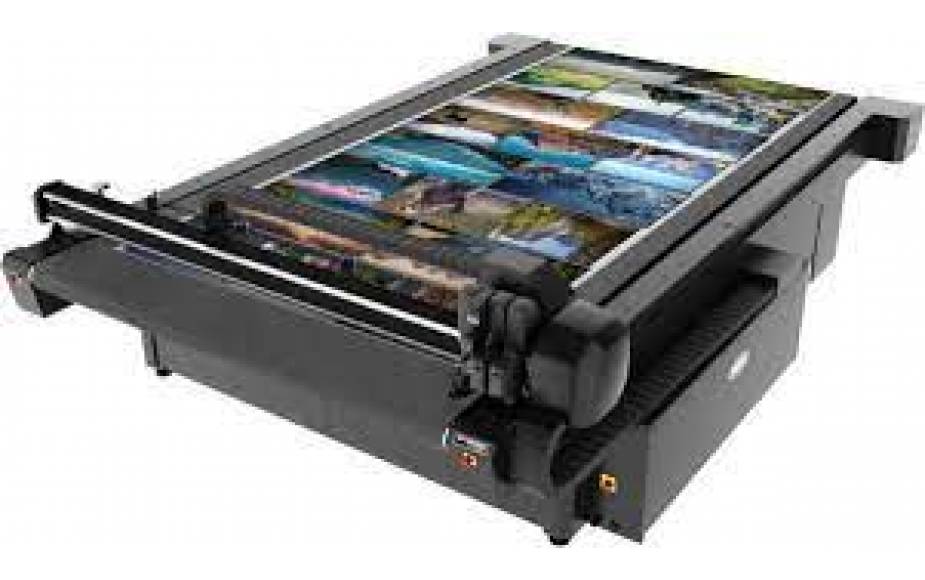

Summa F Series F1432 56 Inch Flatbed Cutter
The F1432 is the latest addition to the F Series flatbed cutters. It allows to process popular 137 cm/54” roll widths more efficiently and its working length gives sufficient margin to easily cut 3m/10ft jobs. For many businesses, this size is the ideal interim solution between the F1612 and F1832 models.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Model F1432
Dimensions 230 x 422 x 122 cm
Material width Up to 142 cm Work zone 136 x 320 cm Vacuum 2.2 kW (50Hz) / 2.55 kW (60Hz)
Vacuum zones 6 zones (2 lines x 3 columns)
Requirements Standard: 3 x 400V + N, 50Hz, max 30A Or: 3 x 208V + N, 60Hz, max 30A Or: 3 x 230V, 50Hz, max 20A
Standard solution includes:
• F Series flatbed system
• Conveyor system with pneumatic media clamps and roll support
• Security Pack
• Camera system
• Axis Control software
• Drag module
• ADC left & right
• GoProduce software
• Speed: up to1000 mm/sec
