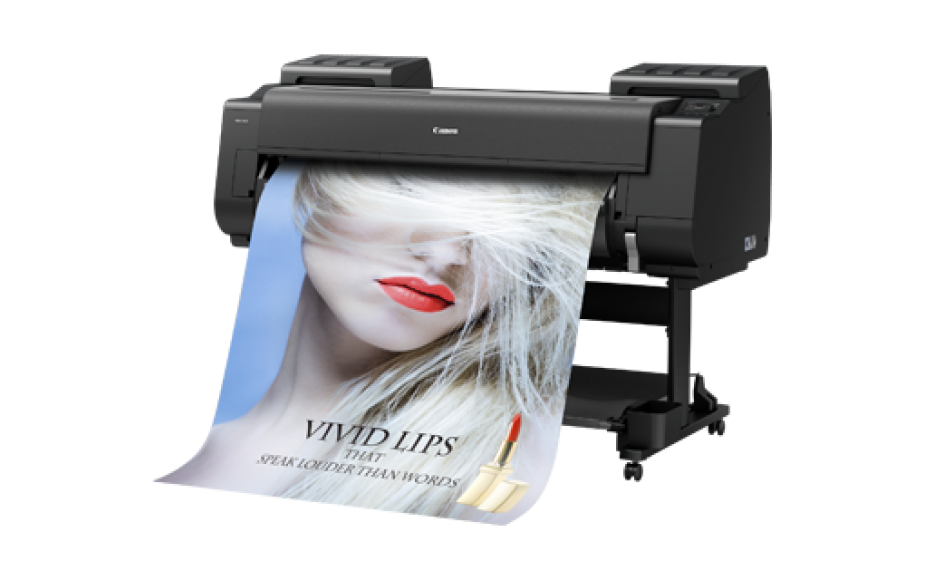

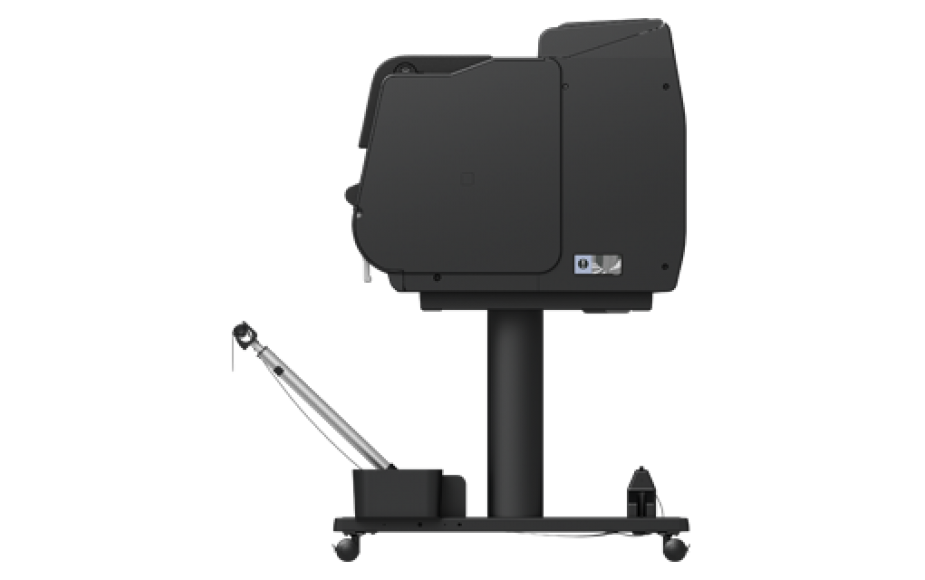

CANON imagePROGRAF Pro-541s/44"

Printer Type

8-Colour, 44" / 1118 mm

Number of Nozzles

18,432 nozzles
(1536 nozzles x 4 colours, 3072 nozzles x 4 colours)

Maximum Print Resolution

2400 x 1200 dpi

Nozzle Pitch

600 dpi x 2

Line Accuracy

±0.1 % or less
User calibration is required.
Printing environment and media must match those used for the adjustments.
Required Paper: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only.

Minimum Ink Droplet Size

4 pl

Ink Capacity

Sales Ink: 160 ml / 330 ml / 700 ml
Bundled Starter Ink: 330 ml

Ink Type

Pigment Ink: Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey

Printer Language

SG Raster (Swift Graphic Raster)
PDF (Ver. 1.7)
JPEG (Ver. JFIF 1.02)

Standard Interfaces (Built-in)

USB A Port:
USB Memory (Direct Print)

USB B Port:
Hi-Speed USB
Full Speed (12 Mbit/sec)
High Speed (480 Mbit/sec)
Bulk Transfer
Series B (4 pins)

Gigabit Ethernet:
Built-in IEEE 802.3 10 base-T
IEEE 802.3u 100 base-TX/Auto Negotiation
IEEE 802.3ab 1000 base-T/Auto Negotiation
IEEE 802.3x Full Duplex
SNMP
Canon-MIB
HTTP
TCP/IP (IPv4/ IPv6)

Wireless LAN:
IEEE802.11n/g/b
WEP (64/128bit)
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)

Memory (Standard)

3 GB

Hard Disk

500 GB (Encrypted HDD)

Plain Paper (A0)

1 min 21 sec (Fast)
2 min 24 sec (Standard)

Heavyweight Coated Paper (A0)

1 min 23 sec (Fast)
2 min 24 sec (Standard)
5 min 34 sec (High)

Heavyweight Photo Glossy Paper (A0)

2 min 56 sec (Fast)
4 min 44 sec (Standard)
5 min 34 sec (High)

Media Feed and Output (Single Roll)

Roll Paper: Front Load, Front Output
Added Roll Paper: One Roll, Front Load, Front Output (Optional)

Cut Sheet: Front Load, Front Output
(Manual Feed using Media Locking Lever)

Media Width (Roll / Cut Sheet)

152.4 ~ 1118 mm

Media Thickness (Roll / Cut Sheet)

0.07 ~ 0.8 mm

Minimum Printable Length

Roll Paper:
101.6 mm (exclude Cloth and Canvas media)
200 mm (Cloth and Canvas media)

Cut Sheet: 203.2 mm

Maximum Printable Length

Roll Paper:
18 m (varies according to the OS and application)

Cut Sheet: 2133.6 mm (with stand)

Maximum Media Roll Outer Diameter

170 mm or less

Borderless Printing Width (Roll Only)

Recommended:
515 mm (B2), 728 mm (B1), 1030 mm (B0), 594 mm (A1), 841 mm (A0), 10", 14", 17", 24", 36", 42", 44"

Printable:
257 mm (B4), 297 mm (A3), 329 mm (A3+), 420 mm (A2), 6", 8", 12", 16", 20", 22", 30", 300 mm, 500 mm, 600 mm, 800 mm, 1000 mm and custom roll width (152.4 ~ 1118 mm)

Physical Dimensions (W x D x H) & Weight
(Include roll holder set, exclude ink and print head)

Main Unit + Stand + Basket:
Approx. 1593 × 984 × 1168 mm (Basket Open)
Approx. 1593 × 766 × 1168 mm (Basket Closed)
Approx. 122 kg

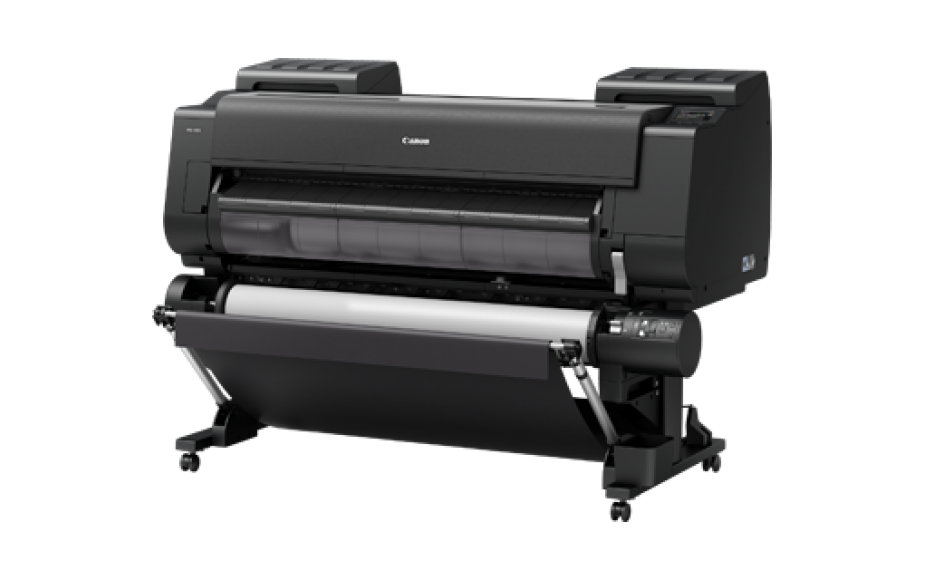

Main Unit + Roll Unit + Stand + Basket:
Approx. 1593 × 984 × 1168 mm (Basket Open)
Approx. 1593 × 766 × 1168 mm (Basket Closed) Approx. 143 kg

Packaged Dimensions (W x D x H) & Weight

Main Unit + Stand + Pallet:
Approx. 1820 x 915 x 1042 mm
Approx. 176 kg

Roll Unit:
Approx. 1727 x 562 x 461 mm
Approx. 33 kg

Power Supply

AC 100 - 240 V, 50 - 60 Hz

Power Consumption

Printing: 116 W or less
Sleep Mode: 2.0 W or less
Power Off: 0.3 W or less

Operating Environment

Temperature: 15 ~ 30°C
Humidity: 10 ~ 80% RH (no dew condensation)

Acoustic Sound

[Acoustic Pressure]
Operation: Approx. 49 dB (A)
(Glossy Paper - Image; Print priority: Standard)

Standby: 35 dB (A) or less

[Acoustic Power]
Operation: Approx. 66 dB or less
(Glossy Paper - Image; Print Priority: Standard)
(Measured using ISO 7779 standard)

Roll Unit (Optional)

RU-43

2"/3" Roll Holder (Optional)

RH2-46
